Manufacturing Range : 800A to 6300A, at maximum Operating Voltage of 1.1KV
Manufactured with both Copper & Aluminium Busbars housed in 1.6mm GI enclosures
3Phase + 100%N with external or internal Earth Bus
Type Tested at CPRI for Short Circuit Fault Level of 50 kA for 1 sec.
Type Tested at CPRI for Temperature Rise upto acceptable limits as per relevant standards, for all ratings
Type Tested at CPRI for Ingress Protection of IP55 ( Higher Degrees can be provided on request )
Insulation Class – better than Class H

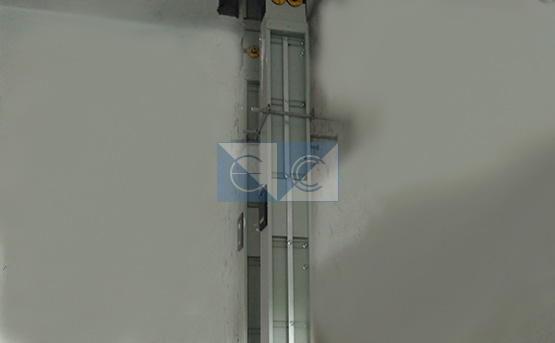

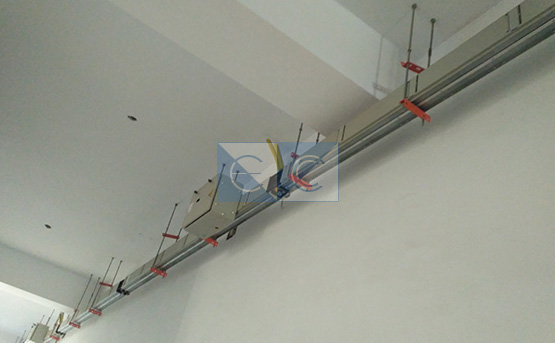

Effective for use in buildings were space is a constraint and there is a requirement for feeding multiple loads distributed throughout the building
